10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5

10mm Micro stepper Motor 5VDC 10BY25 PM mini Stepping Motor

VSM1070 is a precision miniature stepping motor with an outer diameter of 10mm, a motor height of 9.2mm, and an output shaft diameter of 1.5mm. The length of the output shaft can be appropriately changed according to customer installation requirements, and can also be equipped with gears, pulleys, worms, lead screws, etc. output device.

Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

The mounting bracket can be changed according to the customer's request.

10mm micro stepper motor parameter sheet:

10mm micro stepper motor torque curve:

10mm micro stepper motor outside drawing:

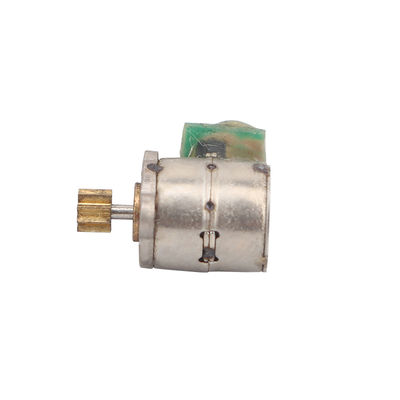

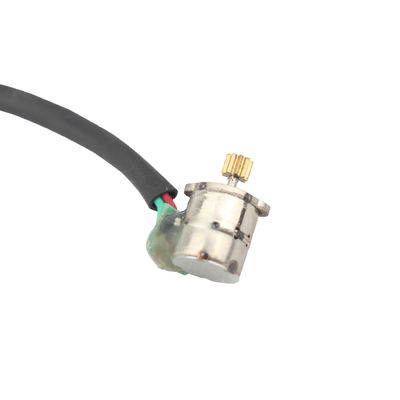

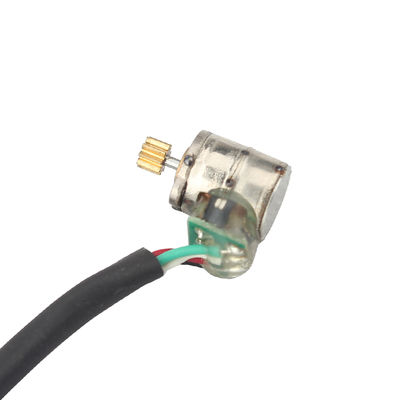

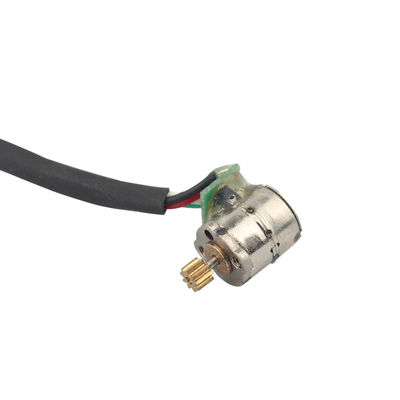

Product display:

10BY micro 5v 10mm diameter mini stepper motor PM stepping motor

Service and Customization:

This kind of small motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control. Customers can customize the motor resistance, installation size, outlet shape and size. For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.
